ATS3BC0600/0800 ATS4BC0600/0800
Automatic Transfer Switch 600 Amp & 800 Amp
ATS3BC0600 / ATS4BC0600 / ATS3BC0800 / ATS4BC0800 600Amp and 800Amp 3 and 4 pole MCCB type Modularized Automatic Transfer Switch. The Standard ATS package includes ATS-01 (programmable ATS controller), TSP-01 (ATS Transformer Module), BTS (Basic Transfer Switch), all the connection harness and indoor enclosure (outdoor type is optional).
For GBP, EURO or USD Pricing please contact us:
Sales: james.daff@sp-powerworld.com
Office: info@sp-powerworld.com
Telephone: +44 (0) 115 923 2568 (United Kingdom)
+44 (0) 1780 753540
Features
- Extraordinary Modularized ATS Design
- Superior Serviceability & Simple Maintenance
- ATS-01 Intelligent Controller -- Voltage Monitoring & Protection with Built-in 168HR Exerciser Timer
- TSP-01 Voltage Transformer Module -- Change Voltage Easily by Plug-In Connectors
- BTS -- Transfer Switch Built with High Short Circuit Breaking Capacity & OCPD*1
- All Modules Connected by Harness with High Voltage Withstand Plug-In Connectors Sets
- Complies with IEC60947-6-1 Requirements*2
<div class="anno"><ul><li><span class="red">*1</span> <span class="annobtxt">OCPD :</span> Over Current Protection Device</li> <li><span class="red">*2</span> <span class="annobtxt">IEC60947-6-1 Requirements :</span><ul><li><span class="annobtxt">IEC60947-6-1 Class CB :</span> ATS provided with over current releases and the main contacts of which are capable of making and are intended for breaking short circuit currents.</li> <li><span class="annobtxt">IEC60947-6-1 Utilization Category AC-33A :</span><ol><li>Frequent operations.</li> <li>Motor loads or mixed loads including motors, resistive loads and up to 30% incandescent lamp.</li></ol></li></ul></li></ul></div>

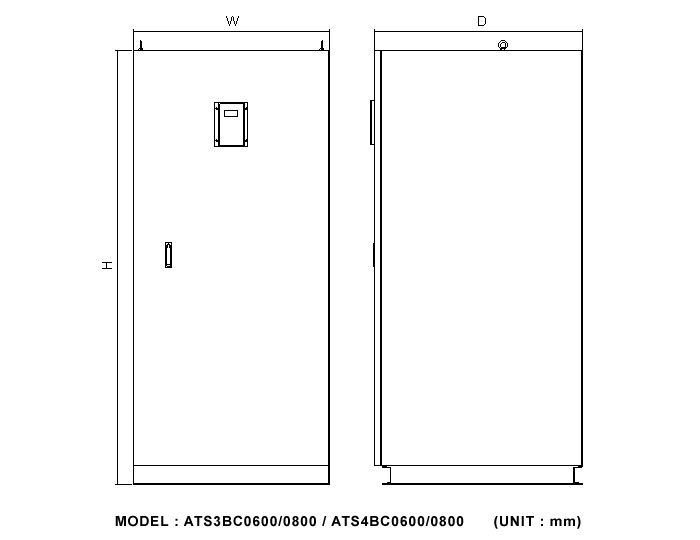

Dimensions
| Enclosure P/N. | CA-1800 | CA-4P1800 |
|---|---|---|
| H | 1800 mm | 1800 mm |
| W | 820 mm | 912 mm |
| D | 700 mm | 700 mm |
| Thickness | 2.0 mm | 2.0 mm |
| Fixed Type | Floor | Floor |
| Wire Portal Dimensions | Bottom Open | Bottom Open |
| IP Class | IP33 | IP33 |
| Outdoor Enclosures | Please contact us if rain-proof (for outdoor use) enclosure is needed. | |
*Note : All features & specifications subject to change without notice.
